Technology for industrial wood gluing
Precise gluing of edges, profiles and panels – with no visible seam
Industrial hot melt and dispersion systems from Robatech for the furniture industry – the exclusive partner for the Czech Republic with our own testing centre, 24/7 service and 50+ years in the industry.
- ExclusiveRobatech partner for the Czech Republic
- 50+ yearsin the industry
- Our owntesting centre
- 24/7service and SOS line
Selected customers from the industry
Where we help in the woodworking industry
Profile wrapping
Continuous application of polyolefin adhesive onto wooden profiles, mouldings and frames. An even layer across the full width of the profile with no overflow at the edges.
Panel lamination
Coating application of adhesive on laminating calenders – application width up to 3,200 mm, line speed up to 150 m/min. For HPL, PVC films and decorative laminate.
Coating application (FKV)
The FKV slot head for continuous application over large surfaces – an even layer with a tolerance of ±5%, minimal overflow at the edges, 1 or 2 valves.
PUR D4 water-resistant bonds
Reactive PUR adhesive for bathroom furniture, kitchen carcasses and exterior components. Resistance to water, heat and chemicals (D4 standard); the Melt-on-Demand system prevents degradation.
Cold gluing of components
Precise dot or line dosing of D1/D2 dispersions for dowelling, lamellating and gluing furniture parts – Sempre electric nozzles up to 500 Hz.
What you're dealing with
- A visible gap on the edge or joint of a panel lowers product quality and leads to complaints – customers will return an otherwise flawless piece.
- Overflow, burning of the adhesive and imprecise application increase consumption, foul the machine and add time for cleaning as well as rejects.
- Bonds with insufficient moisture resistance (D4) complicate the production of bathroom and kitchen furniture and limit customer choice.
How Kaletech solves it
Robatech technology delivers precisely controlled adhesive application – to a defined width, with an instant start and end of application (cut-off). The EdgePro slot head applies an even layer with no overflow even at line speeds up to 35 m/min, so the result is a zero joint line and no adhesive residue outside the bond.
For water-resistant applications (D4) we use the Melt-on-Demand (MoD) system – PUR adhesive is melted only at the moment of consumption, with a protective atmosphere of dry air that prevents premature reaction and degradation. The result is bonds resistant to water, heat and chemicals – with no compromise on the system's operational availability.
For dispersion-based cold gluing – dowelling, lamellating and assembling furniture parts – Robatech offers cold glue application systems with Sempre electric nozzles for precise dot dosing.
How it works and what technology is used
Robatech technology for the woodworking industry integrates a melter, a heated Performa hose and an EdgePro application head into a single controlled unit. Pressure, temperature and application width are synchronised with the line speed – whether it is an edge bander, a profile wrapping machine or a laminating calender. Control runs through the RCS system or an external PLC with industrial communication protocols. For cold dispersion gluing applications, Robatech offers cold glue application systems with Sempre electric nozzles.
Adhesive preparation and melting
The melter (Canduro, JumboFlex or Concept Diamond) melts granules or a block of PUR/EVA/APAO adhesive to the set viscosity. In PUR systems, melting uses Melt-on-Demand technology – only as much as the line currently consumes, with a protective atmosphere of dry air.
Applying a precise layer of adhesive
The EdgePro or FKV slot head applies an even layer of adhesive to a defined width along the entire length of the edge or surface. An integrated filter prevents clogging, and mechanical or motorised width adjustment adapts the head to a format change with no downtime.
Controlling the start and end of application (cut-off)
The control system (PLC or RCS) synchronises application with the movement of the panel – adhesive is applied only where it should be. Precise cut-off prevents overflow at the edges and saves adhesive as well as cleaning time.
A strong and clean result
After the edge band or film is pressed on, a bond with a zero joint line is formed. With PUR adhesive the bond cures by reacting with moisture and reaches D4 resistance – suitable for damp environments, kitchens and exteriors.
Technology used

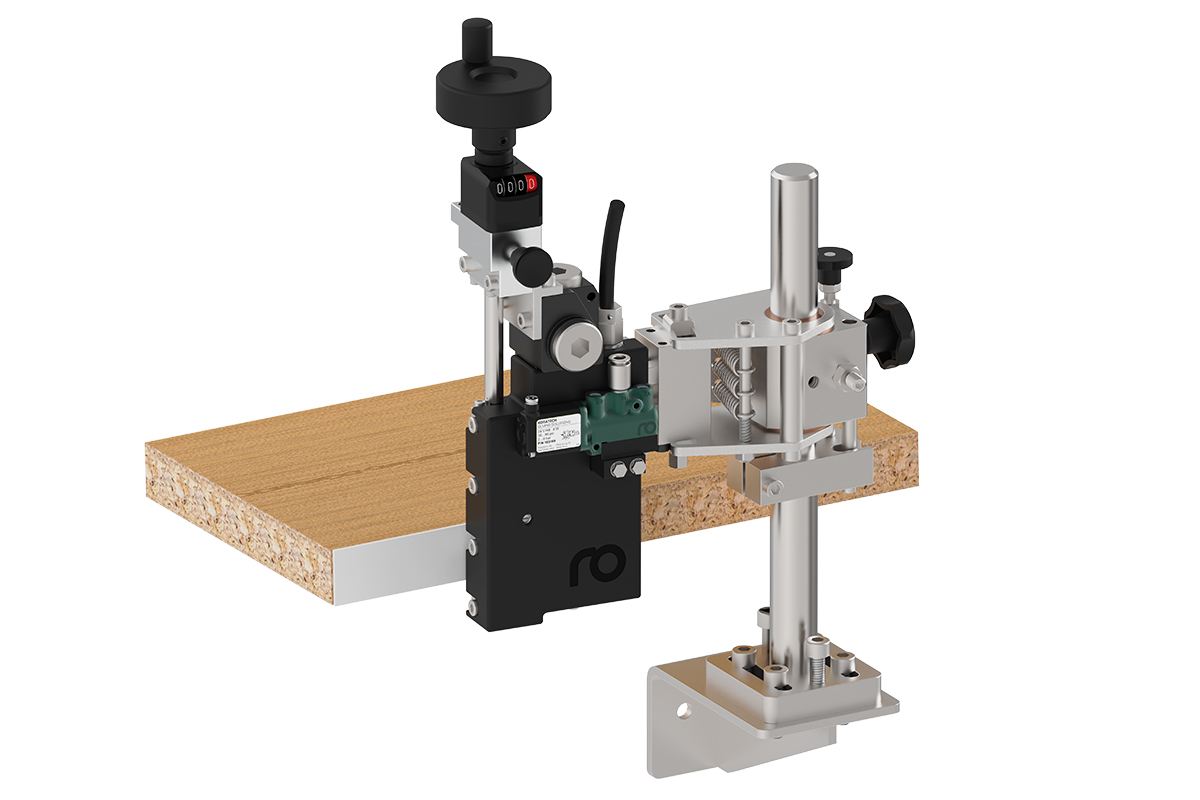

EdgePro Application Head
Slot application head for edge banding in woodworking production. Even application of hot melt adhesive across the full…
More information
Melter for PUR Adhesives – Robatech Canduro 2
The modular Canduro 2 melter for PUR adhesives with melt-on-demand technology, low maintenance requirements and reliable…
More information
Robatech JumboFlex Melter
JumboFlex is a powerful Robatech melter with a capacity of 50 or 100 litres. Flexible use as a buffer, pre-melter or mel…
More information
Performa – heated hose for highly precise applications
Heated hoses for hot melt adhesives have a significant influence on how reliably and precisely products are glued.
More information
Sempre 15/30 jetting head
An electric jetting head available in two configurations for applying medium-viscosity dispersion adhesives up to 4,000…
More informationHot melt vs. cold gluing – how to decide
| Parameter | Hot melt application | Cold glue application |
|---|---|---|
| Curing time | Instant (sets within 1–3 s) | Depends on water evaporation (minutes) |
| Temperature resistance of the bond | High (PUR D4 withstands 110 °C+) | Lower (sensitive to higher temperatures) |
| Suitability for damp environments | Yes – PUR D4 standardised resistance | Limited – dispersion D1/D2 are not D4 |
| Dosing precision | Very high (EdgePro ±2% by width) | High (Sempre nozzles up to 500 Hz) |
| Energy consumption | Higher (heating to 120–200 °C) | Low (operation at room temperature) |
Typical configurations for the woodworking industry
Real-world results
Robotic application of dispersion adhesive for a furniture manufacturer
The automation of the work station allowed the customer to save 6 workers on one shift, who can now be utilised for othe…
Show case studyCustomer references
„The aim was to replace the manual gluing of ironing boards with a faster and more economical solution – and that succeeded. Robatech supplied complete gluing equipment thanks to which we saved a quarter of the costs on both adhesive and production staff. I believe the cooperation will continue on further Leifheit projects."
Why solve your gluing challenge with Kaletech
50+ years of industry experience
We build on the development of Swiss Robatech (since 1975) and our own practice on the Czech market since 2004.
Authorised Robatech partner
The exclusive supplier of Robatech technologies for industrial gluing.
In-house service and parts
A service team, spare parts in stock and an SOS line.
Free consultation
We will design a tailored solution and fine-tune it directly in your operation.
How the collaboration works
Inquiry and consultation
Get in touch and tell us what and where you glue. We will discuss your operation and goals with no obligation.
Application analysis
We assess the materials, the line speed and the requirements for the bond. We recommend a suitable technology and adhesive.
Design and test
We design the configuration and verify it with a test on your materials – often in our testing centre.
Installation and training
We install the system, integrate it into the line and train the operators and maintenance staff.
Service and support
We provide spare parts, preventive service and an SOS line throughout the entire operation.
Frequently asked questions
Precise cut-off and application-width control eliminate overflow outside the bond – adhesive is applied only where it should be. In edge banding this typically means a saving of 15–30% in adhesive consumption compared with older roller systems. On top of that, the time spent cleaning overflow is eliminated and the reject rate drops.
Interested in a solution for the woodworking industry?
Get in touch – we will assess your application (materials, line speed, type of bond) and design a technology solution precisely for your operation. With no obligation.
