SX Diamond / SX LongLife jetting head
A jetting head for precise dot and bead application of hot melt adhesive with a small installation footprint. The SX LongLife variant offers a significantly extended service life.

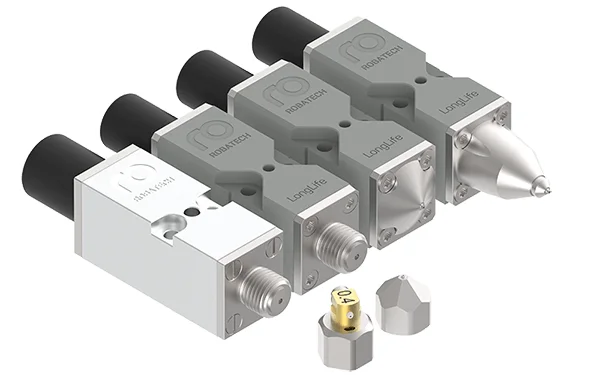

SX Diamond and SX LongLife are jetting heads for contactless application of low to medium viscosity thermoplastic hot melt adhesives. Both variants share the same construction and differ only in the jetting element – SX LongLife offers a significantly longer service life with the same small installation footprint.
The heads are designed for precise dot and bead application at medium to high speeds, with a clean break-off even at high machine speeds. Thanks to their small installation footprint, they are well suited to retrofits and machines with limited space. The modular construction allows a choice of jetting element and configuration as a single or multiple head, so it can be adapted to specific applications in the packaging and printing industries.
Key benefits of the SX Diamond / SX LongLife jetting head
- lower costs thanks to a long service life (50 million duty cycles, or up to 200 million for SX LongLife)
- precise application with clean break-off even at high speed
- flexibility thanks to modular construction
- energy efficiency and safety thanks to CoolTouch insulation
- no nozzle clogging thanks to the integrated filter
- constant temperature for the highest application quality

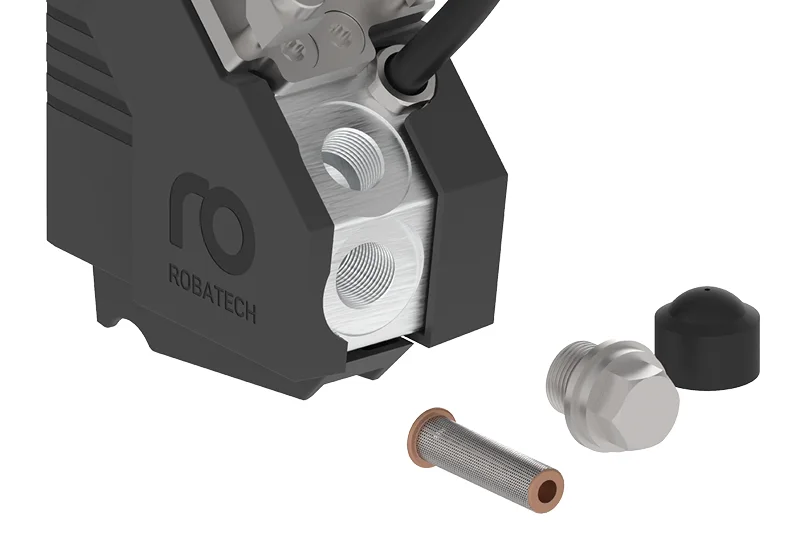

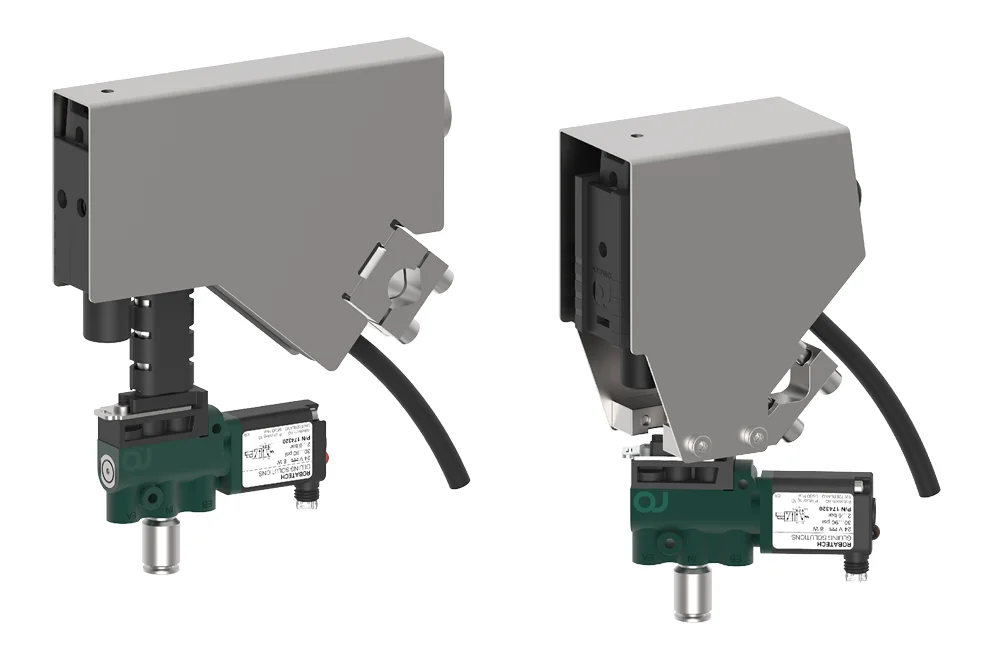

An integrated filter in the heating block prevents nozzle clogging, and nozzle protection reduces wear and heat loss. The optional SX Fast solenoid valve increases the switching frequency to up to 180 Hz and can also be retrofitted to existing heads. CoolTouch insulation protects operators and bonded products from heat and keeps the adhesive temperature constant even on very fast machines; for bottom-up application, a special anti-fouling cover is available, extending service life and reducing maintenance requirements. As part of the Diamond range, the head is compatible with most Robatech application systems.
| SX Diamond | SX LongLife | |
|---|---|---|
| Temperature range | 20–200 °C | |
| Adhesive pressure | max. 75 bar | |
| Adhesive | thermoplastic adhesives | |
| Adhesive viscosity | 500–5,000 mPa·s | |
| Service life (duty cycles) | 50 million* | 200 million* (296/KV), 100 million* (NV) |
| Switching frequency | 120 Hz*/** (SX Fast: 180 Hz*/**) | |
| Adhesive output | 5 ms* | |
| Jetting element width | 18 mm | |
| Nozzles | 296 / 294 | 296 / 294 / KV / NV / NV long |
| Air connection | 6 bar, filtered, oil-free | |
| Supply voltage | 230 V AC (EN60204), 50/60 Hz | |
| Solenoid valve supply | 24 V DC / 8 W (SX Fast: 24 W) | |
| Mounting | Ø 12 mm shaft, flat steel or M5 thread | |
| Noise level | approx. 78–83 dB(A) | |
| Protection rating | IP65 | |
* For the jetting element and valve. The value depends on operating conditions (adhesive, temperature, frequency). ** Continuous duty max. 50 Hz.
SX Diamond and SX LongLife are commonly used in the packaging industry and printing, where their precise dot and bead application at high line speeds is put to good use.
