AX Diamond jetting head
A robust jetting head for contactless bead application of low to medium viscosity thermoplastic hot melt adhesives in demanding operating conditions.
The AX Diamond range of jetting heads is designed for contactless bead application of low to medium viscosity thermoplastic hot melt adhesives. Its robust construction makes it suitable for demanding operating conditions – typically wrap-around film packaging, and gluing boxes and crates, including fruit and vegetable crates.
Key benefits of the AX Diamond jetting head
- durability thanks to robust construction
- energy efficiency and safety thanks to CoolTouch insulation
- constant temperature for the highest application quality
- no nozzle clogging thanks to the integrated filter
- 24 V DC control via PLC
- easy conversion to a 90° nozzle

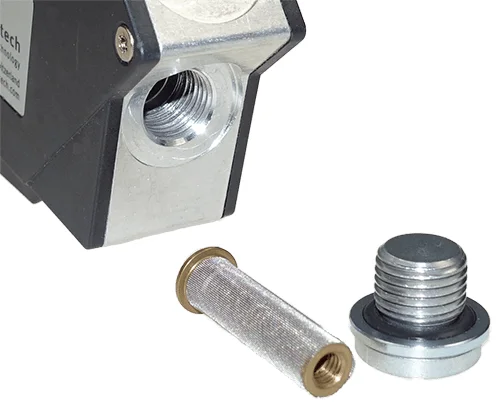

An integrated filter in the heating block prevents nozzle clogging, and nozzle protection minimises wear and heat loss – resulting in a cleaner application and fewer production interruptions. CoolTouch insulation protects operators and bonded products from heat, reduces energy consumption and keeps the adhesive temperature constant even in areas with air movement.

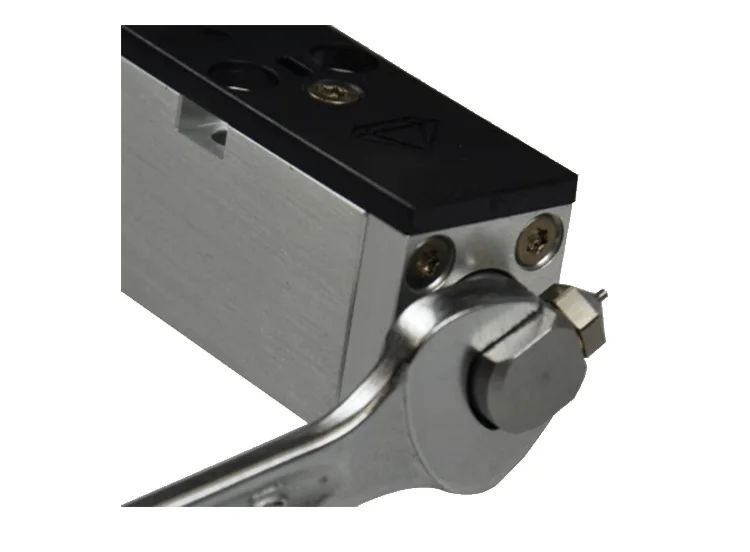

The head integrates easily into both existing and new systems – where space is limited, the solenoid valve can be mounted externally and operated remotely. Conversion to 90° application takes just moments with a single spanner. As part of the Diamond range, the AX Diamond is compatible with most Robatech application systems, simplifying integration into existing machines and reducing spare parts costs.
| Temperature range | 20–200 °C |
| Adhesive pressure | max. 100 bar |
| Adhesive | thermoplastic adhesives |
| Adhesive viscosity | 100–5,000 mPa·s |
| Number of duty cycles | 10 million* |
| Switching frequency | 50 Hz* |
| Adhesive output | 12.5 ms* |
| Jetting element width | 22 mm |
| Nozzles | 294 / 296 / 292 (90°) |
| Air connection | 5–6 bar, filtered, oil-free |
| Air consumption | approx. 6 ml per jetting element/cycle (5 bar) |
| Supply voltage | 230 V AC (EN60204), 50/60 Hz |
| Solenoid valve supply | 24 V DC / 7.3 W |
| Mounting | Ø 12 mm shaft, flat steel or M5 thread |
| Noise level | approx. 65–70 dB(A) |
| Protection rating | IP55 |
* For the jetting element and valve. The value depends on operating conditions (adhesive, temperature, frequency).
The AX Diamond is typically used for primary packaging gluing – sealing boxes, crates and cases in both film and cardboard packaging.
