RobaCoat IT coating head
The RobaCoat IT coating head for intermittent application of hot melt adhesive with precise edge definition and flexible patterns using masking technology.
RobaCoat IT is a range of coating heads for intermittent application of hot melt adhesive, with an emphasis on even application from start to finish and precise edge definition. The result is reproducible at both constant and dynamic machine speeds.
Key benefits of the RobaCoat IT coating head
- even application from start to finish with precise edge definition
- high application quality at both constant and dynamic machine speeds
- easy positioning and fine adjustment during production
- flexible application patterns thanks to segmented nozzle control and masking technology
- control via integrated pattern control or PLC
- durable construction with low maintenance requirements

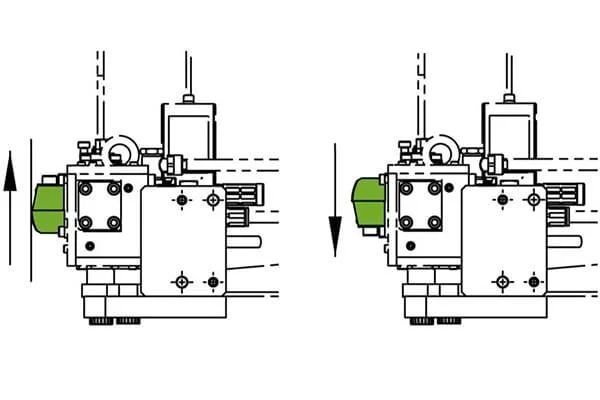

The nozzle, mounted at the front of the head, rotates 180°, allowing flexible installation independent of the direction of travel. An optional mounting bracket with a scale makes positioning against the material easier and allows fine adjustment during production. CoolTouch insulation reduces heat radiation and energy consumption and protects operators.
Individual nozzle segments can be controlled independently – via integrated pattern control or directly via PLC. Combined with masking technology, application patterns can therefore be adapted flexibly and inexpensively to production requirements and reliably repeated at any time. High wear resistance and an integrated filter make RobaCoat IT a durable head with low maintenance requirements.
| Temperature range | 20–200 °C |
| Adhesive pressure | max. 100 bar |
| Adhesive | thermoplastic adhesives |
| Adhesive viscosity | 2,000–10,000 mPa·s |
| Switching frequency | 125 Hz |
| Application width (max.) | RobaCoat IT 160: 160 mm / RobaCoat IT 240: 240 mm / RobaCoat IT 360: 360 mm / RobaCoat IT 440: 440 mm / RobaCoat IT 520: 520 mm |
| Minimum application time | 4 ms |
| Minimum gap | 4 ms |
| Heating element supply voltage | 230 V AC (EN60204), 50/60 Hz |
| Solenoid valve supply voltage | 24 V DC, 6.5 W |
| Air connection (valve) | 3–6 bar, filtered, oil-free |
| Air consumption | approx. 0.46 ml per feed element/cycle (6 bar) |
RobaCoat IT is used mainly in the printing and packaging industries – for labelling materials, paper and mailing bags, food and non-food packaging bags, and insulation materials in construction.
