FKV coating head
The FKV coating head for contact application of hot melt and PUR adhesive onto paper, textiles, film and foam, with an application width of up to 3,200 mm.
FKV is a range of coating heads for contact application of thermoplastic and PUR hot melt adhesives onto a wide range of materials – paper, textiles, fabrics, film, nonwovens and foam. The application width can be set to up to 3,200 mm, depending on head size.
Key benefits of the FKV coating head
- constant coating weight even at varying speeds
- precise edge definition without unnecessary material trim
- reliable operation thanks to robust construction
- quick, smooth width adjustment up to 3,200 mm
- masks for product-specific application patterns
- modular construction for customer-specific configurations
Flow control in the melter keeps the coating weight constant even at varying production speeds, temperature control with optimal heat distribution in the head contributes to application quality, and an optional mounting bracket precisely aligns the head with the material. A precise edge definition saves material at the edges and reduces trim waste.

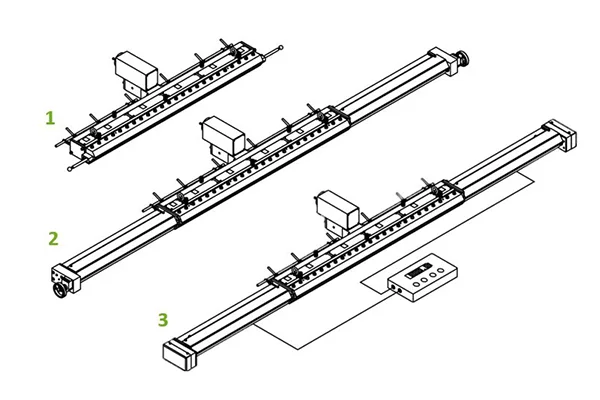

A durable steel construction and a nozzle shape with no dead spots for residual adhesive ensure a long service life and smooth adhesive flow; an integrated filter captures impurities. FKV is manufactured in two versions – with a continuously adjustable application width (manual or motorised, for quick format changes) and with a fixed width defined by a mask in the nozzle, which can also be used for economical application patterns (e.g. stripes).
| Temperature range | 20–200 °C |
| Adhesive pressure | max. 50 bar |
| Adhesive | thermoplastic and PUR hot melt adhesives |
| Adhesive viscosity | 200–100,000 mPa·s |
| Production speed | 1–500 m/min |
| Application width | FKV 200: 10–200 mm / FKV 350: 20–350 mm / FKV 520: 20–520 mm / FKV 820: 20–820 mm / FKV 1100: 100–1,100 mm / FKV 1400: 200–1,400 mm / FKV 1700: 600–1,700 mm / FKV 2000: 800–2,000 mm / FKV 2300: 1,100–2,300 mm / FKV 2600: 1,400–2,600 mm / FKV 3200: 1,500–3,200 mm |
| Coating weight | 1–1,000 g/m²* |
| Supply voltage | 230 V AC (EN60204), 50/60 Hz |
| Mounting | a complete mounting bracket and stand are available |
| Noise level | 65–70 dB(A) |
* Depends on application width, production speed, pressure, adhesive and its viscosity.

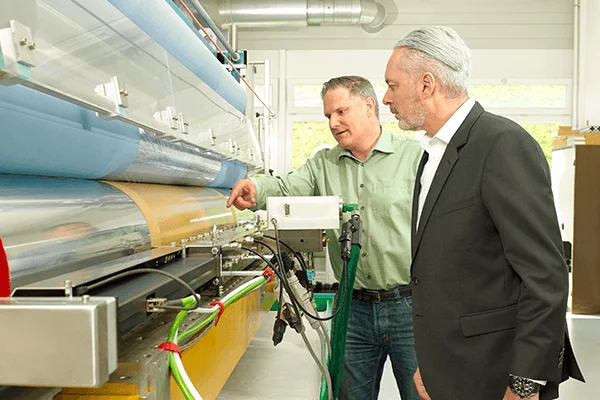

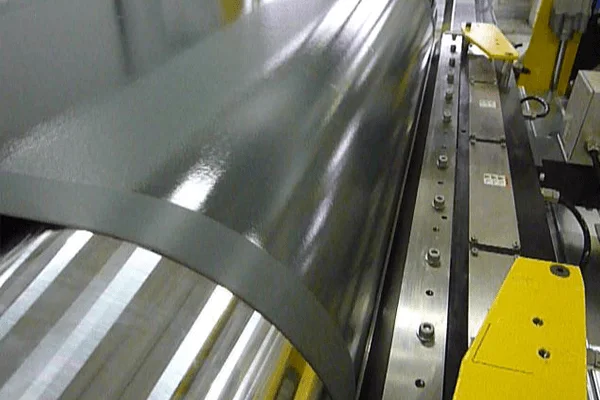

FKV is used for laminating, film lamination and coating application onto textiles and technical fabrics, as well as for profile wrapping and other coating applications.
